Variable Speed Drive
Efficient production in harsh climatic conditions
Variable Speed Drive (VSD) AK06 series is designed to control and protect electric submersible and surface pumps with induction and permanent magnet motors. Triol AK06 VSD solution combines unique technical characteristics, the highest operating qualities, and excellent reliability.
High-tech solution that is easy to work with
Triol AK06 VSD is represented by 6 lines, each of which was created for a definite segment of the global oil production industry. The lines differ from each other in the cabinet enclosure type and the power requirements at the VSD input. Variable Speed Drives AK06 series is the optimal solution to a wide range of operational tasks, significantly save the time of service engineers.
Internationally certified solution
The dedicated special algorithms of VSDs operational system strengthen resources of oil production Companies and contribute to the growth of oil industry. Triol AK06 VSDs correspond to virtually any task of ESP technology and help oil and oilfield service companies receive the maximum benefit. The products of the series operate in the following climatic conditions: Arctic, Tropical, Desert, Maritime (including offshore platforms)
ISO 9001: 2015
Maximization of production
- Voltage Sags protection
- “Catch on the fly” mode
- Gas lock algorithm
Commissioning is a snap
- Automatic Well Commissioning
- Pre-emergency state detection
- User-friendly interface
- Voltage Optimization Mode
- Modes of automatic start
- Triol Vector Control Mode
- More than 100 models in 6 lines
- Universal solution for Induction and Permanent Magnet Motors
- Wide range of protocols to interface with any digital network
ESP run life extensions
- Current optimization mode
- Backspin control and protection
- Built-in insulation monitoring system
Variable Speed Drive Triol AK06 series is the best solution for your high-efficient production, operating with any type of motor in harsh climatic conditions. Triol AK06 VSD solution combines unique technical characteristics, the highest operating qualities, and excellent reliability.

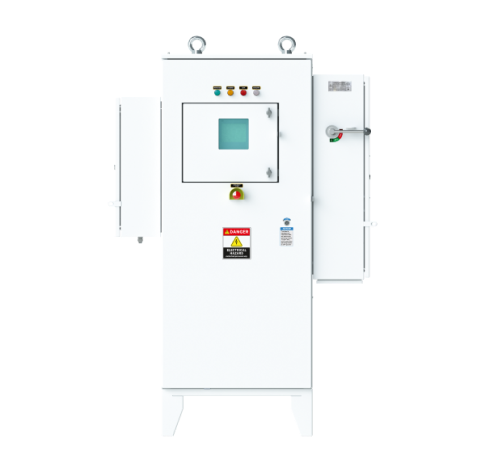

AK06 Variable Speed Drive Lineup
Sustainable operation in any kind of environment
User-friendly interface and easy operation!

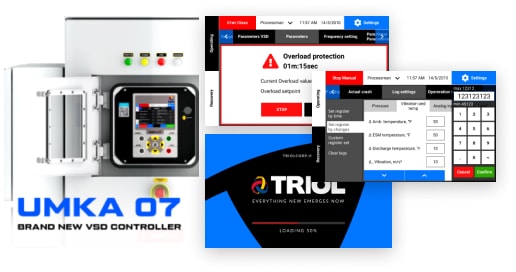

Triol AK06 VSDs are complete with UMKA07 controller. The controller has a wide range of connected peripherals thus saving costs on the VSD expansion units’ integration.
Triol UMKA07 allows you to read, process, store and visualize received equipment data.
Safety and maximum efficiency!
In addition to all UMKA07 benefits, Triol AK06 can be equipped with an input filter, which provides a total harmonic distortion in current generated by the frequency converter of not more than 5% when the VSD is loaded from 70% and above resulting in safer operation and increased efficiency.
